LFX Mentorship: CNCF - Krkn: Chaos scenario rollback feature (2025 Term 2)

·8 mins· ·
Blog En LFX-Mentorship
Zhe-You Liu
Author
Zhe-You Liu
Focused on Contributing to open source, Distributed Systems, and Data Engineering.
Table of Contents

What is LFX Mentorship
#

The Linux Foundation LFX Mentorship is a paid internship program for open source projects, similar to Google Summer of Code, but LFX Mentorship has three terms each year:

  • Term 1: March - May
  • Term 2: June - August
  • Term 3: September - November

Each term features different projects from organizations like CNCF, RISC-V, or Linux Kernel, and each project has a mentor. A single project may open multiple positions in the same term, and you can apply for up to three projects, but each project only selects one mentee.

You can find detailed information about each project on GitHub: cncf/mentoring or the LFX Mentorship website.

This time, I only applied for the CNCF Krkn (sandbox) project, specifically the CNCF - Krkn: Chaos scenario rollback feature (2025 Term 2), and was fortunate to be selected.

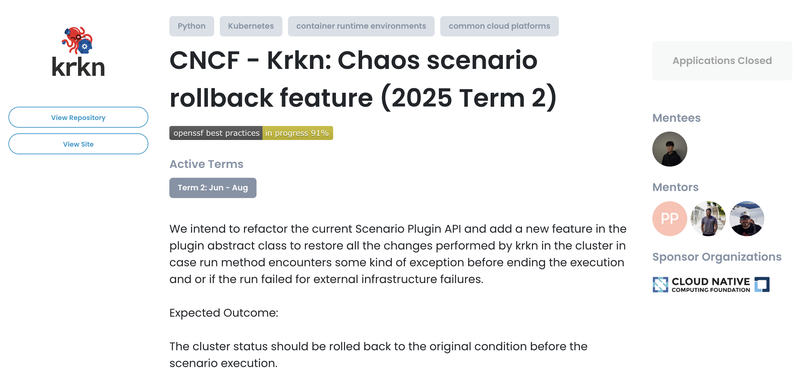

LFX Page

Introduction to CNCF Krkn (sandbox)
#

krkn-logo
Krkn is pronounced “Kraken”

CNCF Krkn (sandbox) is a chaos and resiliency testing tool designed for Kubernetes, open-sourced by the Red Hat Chaos Engineering team.

Essentially, Krkn uses Python’s Kubernetes Client to create Kubernetes resources (such as Pod, Job, NetworkPolicy, etc.) based on the chaos scenarios specified in config.yaml, simulating failure scenarios.

Project Goal: Chaos Scenario Rollback Feature
#

As a chaos testing tool for Kubernetes, having a robust rollback feature is crucial.

All chaos scenarios are implemented based on the common interface AbstractScenarioPlugin. The goal of this project was to design and implement a rollback interface applicable to all chaos scenarios, allowing users to restore the system to its original state after tests or errors.

Since these scenarios ultimately simulate failures by creating Kubernetes resources, the core challenge was to track these resources and correctly delete or restore them after the test.

How to Apply for LFX Mentorship
#

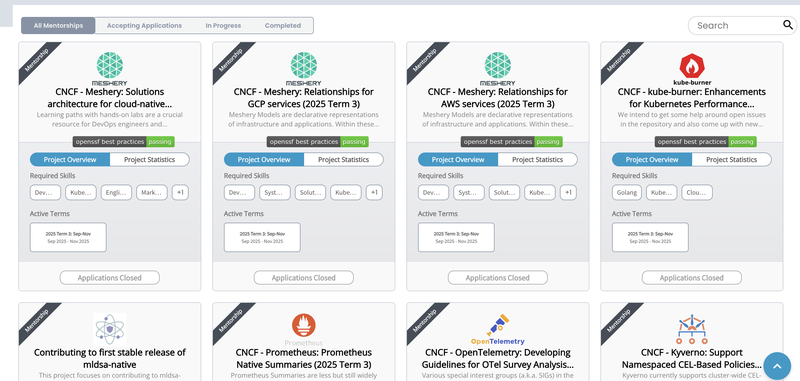

lfx-form
You can apply for projects directly after registering an account on the LFX Mentorship website.

For each project application, you need to answer the following questions:

  • Self-introduction: Includes questions such as
    1. What is your current status? Are you a student or transitioning into a new career?
    2. What are your goals and aspirations?
    3. Why are you interested in this mentorship opportunity?
    4. Tell us something that makes you unique as an applicant.
  • Address
  • Contact information: GitHub or LinkedIn
  • Skills
    • Tag-based form, with an additional paragraph for extra descriptions
  • Cover Letter: You must answer the following questions and submit as a PDF
    1. How did you find out about our mentorship program?
    2. Why are you interested in this program?
    3. What experience and knowledge/skills do you have that are applicable to this program?
    4. What do you hope to gain from this mentorship experience?

The Cover Letter is the most critical part. In addition to answering the required questions, you can:

  • Explain your past experience
  • Describe your proposed solution for the project

I wrote a PoC beforehand and explained my design in the Cover Letter, including a link to the PoC branch and key code snippets, with a table of contents at the top to help the mentor quickly find important sections.

My Proposal: Alembic-like File-based Rollback Mechanism
#

For this project, I proposed an Alembic-like state management mechanism based on files, aiming to robustly track and manage the state of Kubernetes resources. The core idea is to serialize each rollback operation (rollback callable) and the corresponding Kubernetes resource state (namespace, pod_name, service_name, etc.) into an executable Python file as a version file, using a nanosecond timestamp as the filename to ensure uniqueness and order. During rollback, you simply execute these version files in chronological order to restore previous states step by step.

Design Considerations for State Management
#

  1. Store state in memory
    • If the process crashes, the state cannot be persisted.
  2. Store state in a local database (e.g., SQLite)
    • This approach is a bit overkill and over-engineered.
  3. Git-like state management
    • Use commits to record state changes.
    • Kubernetes resource state changes are complex and not easily managed this way.
    • May also record unrelated state changes.
  4. Serialize state as YAML or JSON
    • The final command to execute the version file would be coupled to each scenario’s implementation.
    • Rollback execution would depend on Krkn’s code.
  5. Alembic-like state management

Final Design
#

Ultimately, I implemented state serialization as Python files, ensuring:

  • Rollback operations are reliably saved to disk even if the main Krkn process fails.
  • Version files are readable and clearly record resource identifiers for rollback.
  • A clear history is provided.
  • Rollback execution is decoupled from scenario implementations:
    • These version files can be executed independently.
    • Execution does not depend on Krkn’s scenario implementations.
    • They can be run on any Python environment.

The final directory structure is as follows:

  • Versions Directory: Root directory for all version files, default /tmp/kraken-rollback
    • Rollback Context Directory: Format <timestamp (ns)>-<run_uuid>. Each chaos scenario run generates a unique Run UUID to distinguish rollback contexts.
      • Version Files: Named <chaos_scenario_name>_<timestamp (ns)>_<random_suffix>.py
  • Example:
    /tmp/kraken-rollback/
    ├── 1755488223093251000-168dce4c-fdb4-4e8c-aa5b-7f919777801b
    │   └── network_chaos_scenarios_1755488221668750000_fphcbojh.py
    ├── 1755496143932815000-7d32bf81-2c0d-4d56-b75b-b0702b2c45f9
    │   └── network_chaos_ng_scenarios_1755496142436906000_btmcxrri.py
    └── 1755523261039221000-0ddd9f07-bcd8-47bc-bf89-f9c4f2503ead


The complete Rollback Lifecycle:

Loop{For each Chaos Scenario}
Loop  --> End[All Scenarios Complete]
Loop -- Chaos Scenario --> RollbackSetup[Set rollback_callable and flush version file to disk before making any change]
RollbackSetup --> ClusterChange[Make change to cluster]
ClusterChange --> ErrorCheck{Unexpected error during the run?}
ErrorCheck -- Yes --> ExecuteRollback[Execute the version file, then rename it by adding the .executed suffix.]
ExecuteRollback --> RunComplete[Run Complete]
ErrorCheck -- No --> Cleanup[Cleanup version file]
Cleanup --> RunComplete
RunComplete --> Loop

–>

rollback-lifecycle

Pull Requests
#

The final implementation included the following main parts:

Collaboration Experience with the Red Hat Chaos Engineering Team
#

One major advantage of LFX Mentorship is the opportunity to work closely with project maintainers and mentors. In this project, I was glad to collaborate with members of the Red Hat Chaos Engineering team ( @Tullio, @Ravi and @Paige), which taught me a lot about real-world chaos engineering use cases and Kubernetes.

The mentors and I were located in Italy, the US, and Taiwan, but we still managed to find a suitable meeting time—Friday nights at 10 PM (UTC+8) in Taiwan. We also communicated via the krkn Slack channel.

weekly-checkpoint-meeting
Weekly checkpoint meeting at 10 PM (UTC+8) Special thanks to @Tullio and @Ravi for their discussions and feedback at every meeting.

Since I had already completed the core PoC when applying, our first meeting was to confirm mutual understanding of the proposal. Subsequent meetings covered:

  • Aligning design details
    • Rollback lifecycle
    • Signal handler and cleanup design
    • Rollback interface setup
    • Version file and directory structure
    • How to execute version files
  • Feature discussions
    • Adding list-rollback and execute-rollback commands
    • Instead of deleting version files, add the .executed suffix
  • Code review
    • Review new and modified implementations since the last meeting
    • Discuss potential issues (thread-safety, API interface)
  • Progress confirmation
    • Clarify priorities for the next meeting

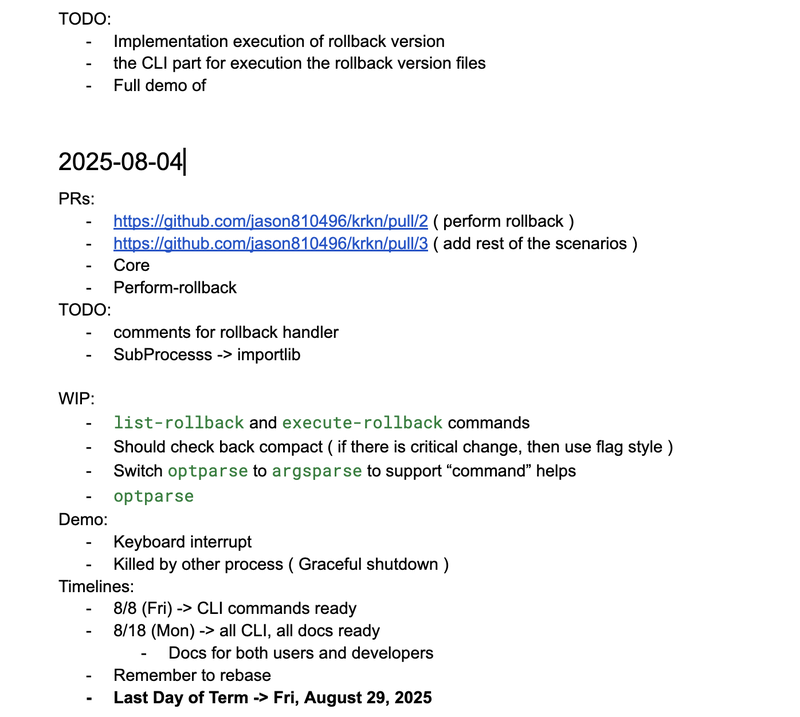

checkpoint-note
I organized TODOs and notes during each checkpoint meeting

Discussing Real-world CNCF Krkn Use Cases
#

In the early meetings, I asked my mentors about real-world use cases for CNCF Krkn. Currently, Krkn is mainly used by the Red Hat Chaos Engineering team to test the resilience and limits of OpenShift, including performance bottlenecks in clusters with thousands of nodes.

Besides Red Hat, MarketAxess also uses and contributes to Krkn.

Krkn Adopters

API Interface Design Discussion
#

I spent quite some time with @Tullio discussing the design of the set_rollback_callable interface. Initially, I leaned toward a more extensible design that could serialize various parameters.

However, Tullio offered a different perspective: dynamic parameter serialization for future extensibility was a bit over-engineered. Since Krkn ultimately creates or modifies Kubernetes resource definitions, and all methods that can execute set_rollback_callable are subsets of AbstractScenarioPlugin, a cleaner interface is possible.

After some back-and-forth, I understood the mentor’s experience and viewpoint. Whether it’s Deployment, Service, Pod, or other Kubernetes resources, they’re just identifiers. There’s no need to design a complex serialization mechanism for parameter naming like deployment_name, service_name, pod_name, etc. Dependency injection for the Kubernetes client, namespace, and resource identifier is sufficient.

When designing interfaces, it’s important to consider the KISS (Keep It Simple, Stupid) principle and avoid unnecessary complexity.

Summary
#

For students, LFX Mentorship is an international remote internship for contributing to open source projects. I highly recommend giving it a try!

International Communication

The most interesting part of LFX is collaborating closely with mentors from different countries and cultural backgrounds. At first, I needed live subtitles on Google Meet to understand, but eventually I could communicate directly, which greatly improved my spoken English.

When contributing to Apache Airflow, most communication is via text in Issues and PRs, with few opportunities for spoken interaction (and the community meetings are usually at midnight Taiwan time).

Working with Top Maintainers

Collaborating with the Red Hat Chaos Engineering team gave me deeper insights into cloud native and container technologies. Working directly with project mentors helped me better understand project requirements and challenges, while also honing my high-level design and low-level implementation skills.

Paid Open Source Internship

Although LFX’s stipend is adjusted based on Purchasing Power Parity (PPP), it’s a rare opportunity for students to get paid for open source work. The stipend is paid in two installments, and in Taiwan, you need to fill out a wire transfer form to receive it.

From a Maintainer’s Perspective

As an Apache Airflow committer, I better understand what maintainers expect from applicants and the mentor’s thought process during code reviews. I always review my own PRs and clearly explain changes to help maintainers quickly grasp my design.

If you can clearly explain the Why, How, and What in your Cover Letter and propose concrete solutions for the project’s needs, you’ll have a better chance of standing out.
