PgBouncer: Lightweight Postgres Connection Pool ·

Table of Contents

Context
#

While Django allows setting configurations like CONNECTION_MAX_AGE, using gunicorn (multi-process) to run multiple API instances or using HPA to scale API instances in k8s can still lead to DB connection overload issues!

About PgBouncer
#

pgbouncer/pgbouncer

lightweight connection pooler for PostgreSQL

2960

448

PgBouncer serves as middleware for centralized DB connection pooling.

It enables backend service instances to reuse DB connections through PgBouncer.

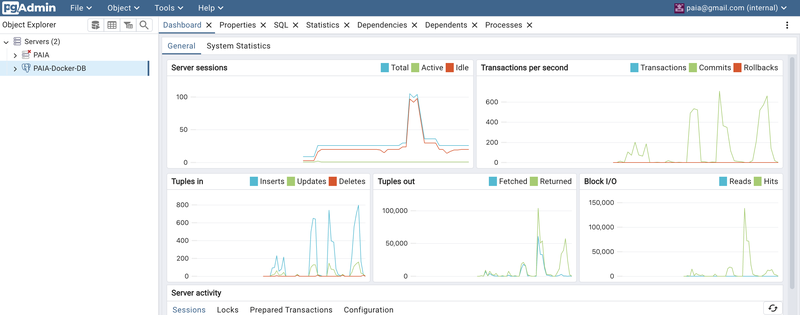

As illustrated:

The Transactions per second on the right shows the number of transactions spiking during three load tests.
- The 2nd load test used Django’s native DB connection method.
- The 1st and 3rd load tests used pgbouncer for connecting WebService instances.
The Server sessions on the left (representing the number of current DB connections) indicate:
- During the 2nd load test: DB connection overload occurred!
- During the 1st and 3rd load tests: DB connections stably remained around 20.

Backend Service Configuration
#

Special settings needed:

docker-compose.yml
.env

docker-compose.yml
- Ensure db and pgbouncer are on the same network.
- Since it’s on Docker’s internal network,
  - The postgres HOST for pgbouncer should be set to db.

db:
    image: postgres:15.1
    container_name: postgres
    restart: always
    environment:
      POSTGRES_USER: your_postgres_user
      POSTGRES_PASSWORD: your_postgres_password
      POSTGRES_DB: dev
    ports:
      - 5432:5432
    volumes:
      - pg_data:/var/lib/postgresql/data
    networks:
      - django_network
pgbouncer:
    image: bitnami/pgbouncer
    container_name: pgbouncer
    restart: always
    ports:
      - 6432:6432 # Connect to `pgbouncer` on port 6432
    environment:
      POSTGRESQL_USERNAME: your_postgres_user
      POSTGRESQL_PASSWORD: your_postgres_password
      POSTGRESQL_HOST: db
      POSTGRESQL_PORT: 5432
      POSTGRESQL_DATABASE: dev
      PGBOUNCER_DATABASE: dev
    networks:
      - django_network # Ensure `db` and `pgbouncer` are on the same network

.env
- To connect to pgbouncer:
  - Set DB_BOUNCER=True
  - Set DB_PORT=6432

# if you want to use postgres you should set DB_ENGINE
DB_ENGINE=django.db.backends.postgresql
DB_HOST=127.0.0.1
# DB_PORT=5432
DB_NAME=postgres
DB_USER=USER_NAME
DB_PASSWORD=PASSWORD12345678
# if you want to use `pgbouncer` you should set DB_BOUNCER=True
# and set DB_PORT to 6432
DB_BOUNCER=True
DB_PORT=6432

Backend Service `settings.py` Modification
#

Details of changes:

Using pydantic’s BaseSettings for DB configuration.
In settings.py, determining whether to connect to DB or pgbouncer based on DB_BOUNCER.

config.py

from pydantic import BaseSettings, Field

class DATABASE_SETTINGS(BaseSettings):
    model_config = SettingsConfigDict(env_prefix='DB_')

    ENGINE: str = Field(default='django.db.backends.sqlite3')
    HOST: str = Field(default='')
    PORT: int = Field(default='')
    NAME: str = Field(default='')
    USER: str = Field(default='')
    PASSWORD: str = Field(default='')
    CONN_MAX_AGE: int = Field(default=1)
    CONN_HEALTH_CHECKS: bool = Field(default=True)
    BOUNCER: bool = Field(default=False)

database_settings = DATABASE_SETTINGS()

settings.py

from config import database_settings

DATABASES = {
  'default': database_settings.model_dump(mode="json")
}
if database_settings.BOUNCER:
  DATABASES['default']['DISABLE_SERVER_SIDE_CURSORS'] = True
